Wichard HR Quick Release Snap Shackle With Large Bail - 90mm Length - 3-35/64" [2774W]

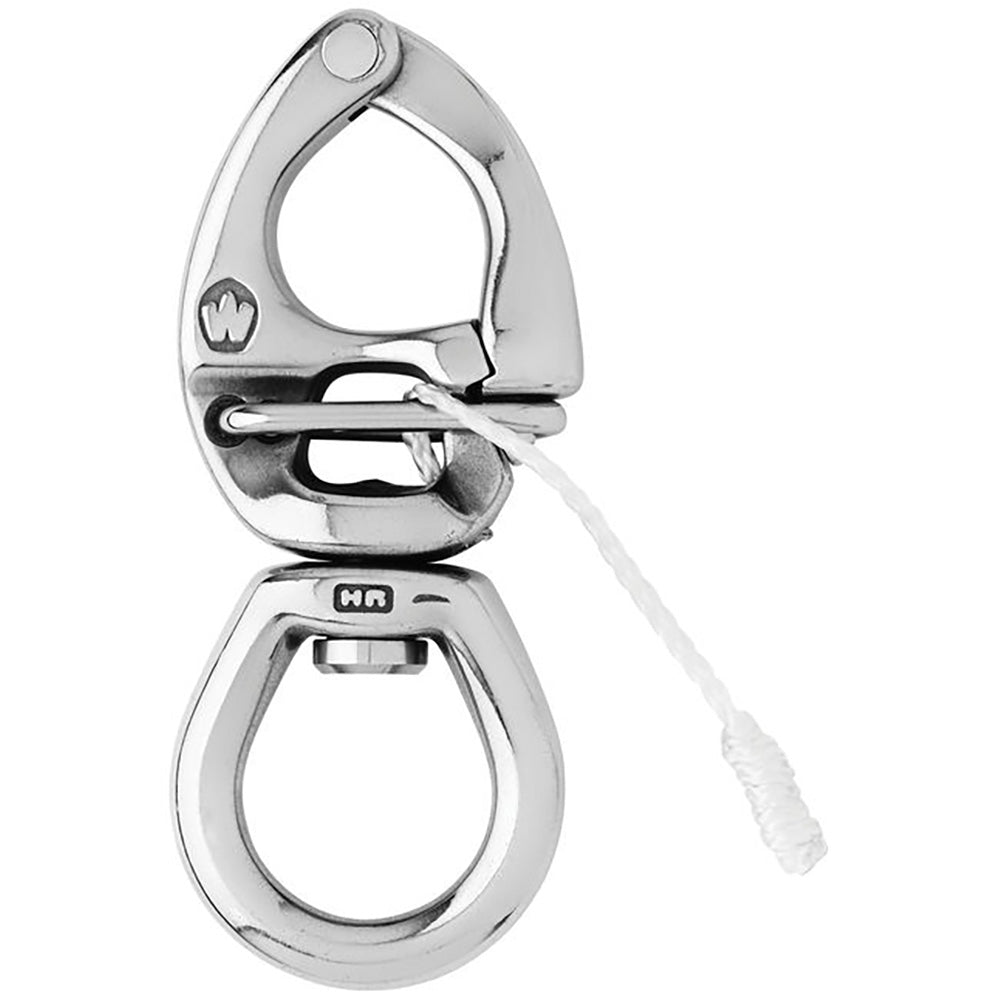

HR Quick Release Snap Shackle With Large Bail - 90mm Length - 3-35/64"

Features:

• HR forged (17.4 PH) quick-release snap shackle with large bail
• The opening is made by pulling the lanyard
• Perfect to attach several lines (spinnaker sheets...)
• Outstanding working and breaking loads
• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations
• Perfect to attach several lines: spinnaker sheets...

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 2820 / (kg) 1280
• Breaking load: (lb) 4400 / (kg) 2000
• Weight: (lb) 0.22 / (g) 100

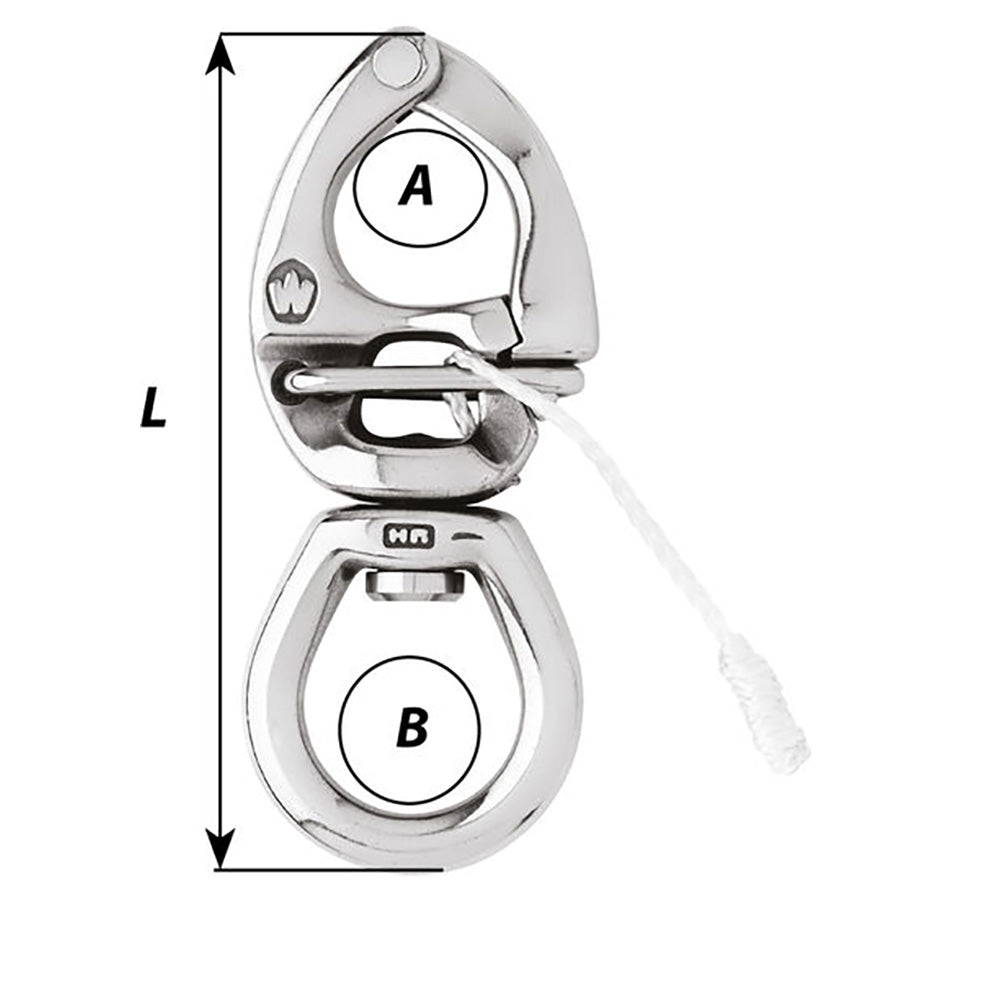

Dimensions:

• A; (inch) 5/8" / (mm) 16
• B: (inch) 29/32" / (mm) 23
• Length: (inch) 3 35/64" / (mm) 90

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual
