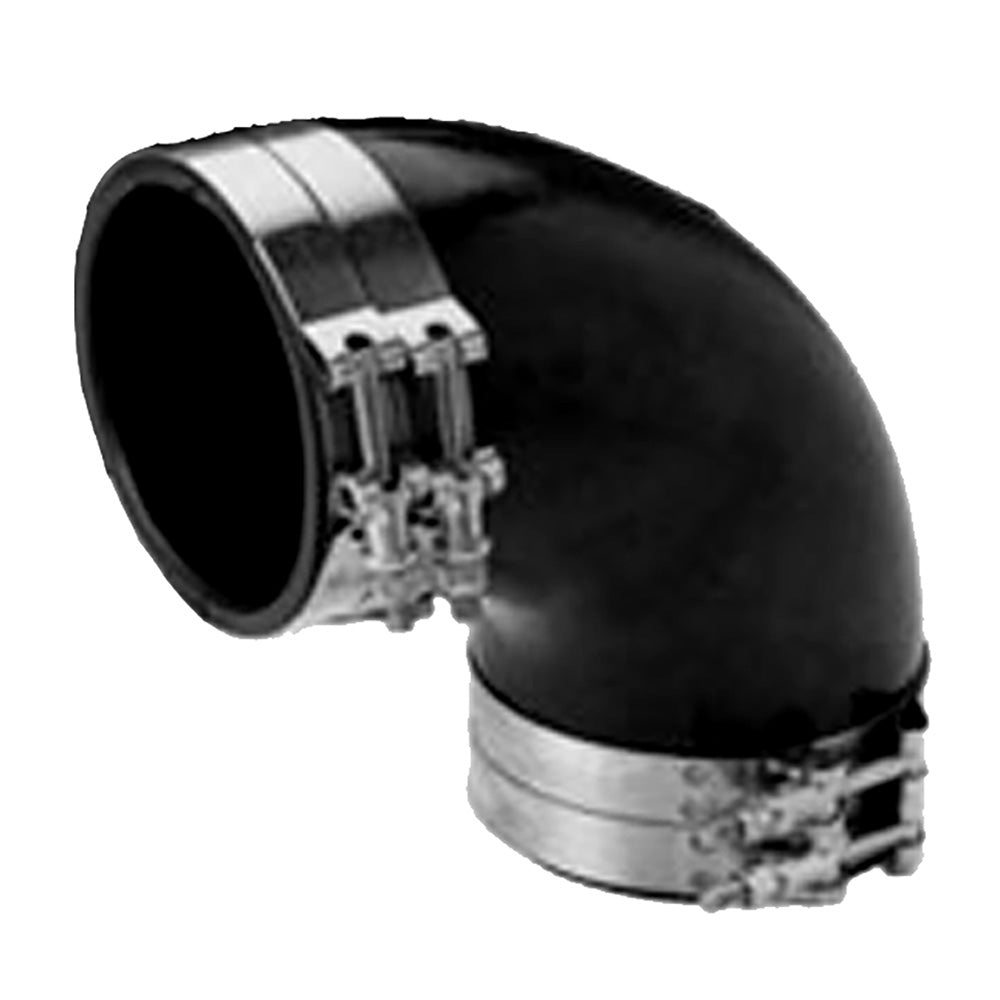

Trident Marine 4" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps [TRL-490-S/S]
Engine Parts & Service , Engine Parts & Service - Exhaust Hose

Trident Marine 4" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps [TRL-490-S/S]

$99.99 $161.19

Quantity

Sku:

TSM-100834

Category:

Engine Parts & Service ,

Engine Parts & Service - Exhaust Hose

Tag:

Brand_Trident Marine ,

Engine Parts & Service

Vendor:

Trident Marine

Type:

Exhaust Hose

4" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.

Features:

  • Four stainless steel clamps are included
  • This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
  • Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards)
  • Black high-temp EDPM rubber

Construction:

  • Color: Black
  • Reinforcement: Reinforcing ribs on 6” I.D. and above
  • Temperature Range: up to 250°F (121°C)

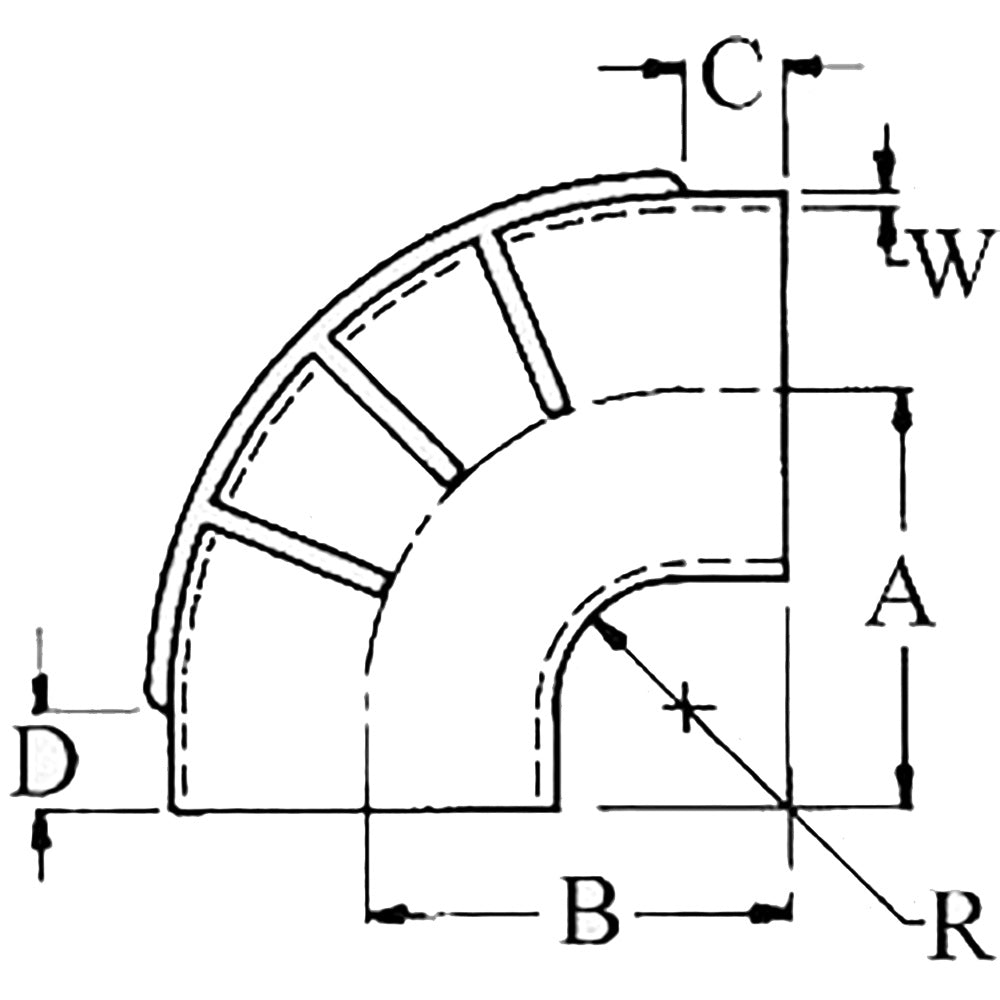

Specifications:

  • Inner Diameter: (inch) 4” / (mm) 101.6
  • A: (inch) 5.75" / (mm) 146
  • B: (inch) 5.75” / (mm) 146
  • C: (inch) 1.75” / (mm) 44.4
  • D: (inch) 1.75” / (mm) 44.4
  • R: (inch) 2” / (mm) 50.8
  • W: (inch) 0.25” / (mm) 6.4
  • Elbow Degree: 90 degrees

Specifications:

  • ID Diameter (inches): 4"
  • Box Dimensions: 7"H x 7"W x 8"L WT: 2.6 lbs
  • UPC: 704917000411

Quick Guide (pdf)
