Engine Parts & Service , Engine Parts & Service - Accessories

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - (5/16" 9/16") Clamping Range - 10-Pack - SAE Size 3 [705-0141]

$15.99 $25.37

Quantity

Sku:

TSM-98821

Category:

Engine Parts & Service ,

Engine Parts & Service - Accessories

Tag:

1st Class Eligible ,

Brand_Trident Marine

Vendor:

Trident Marine

Type:

Accessories

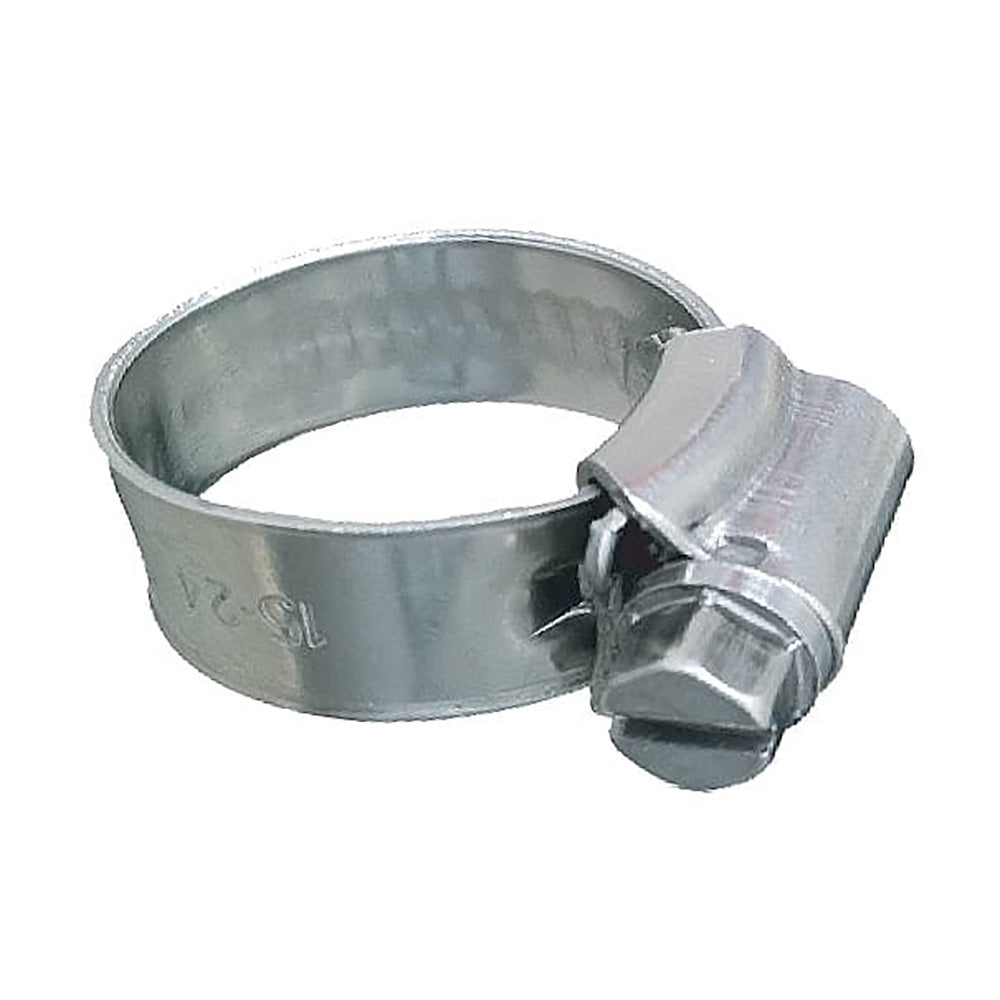

316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - (5/16" – 9/16") Clamping Range - 10-Pack - SAE Size 3

Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel Compact “HD NON-PERF” Worm Gear Hose Clamp. The 9.7 mm (0.382”) wide band is Non-Perforated and smooth on the inside with rolled edges. This eliminates hose damage with increased clamping force. The high strength, compact, one-piece 14mm (0.55”) wide housing provides one of the highest clamping force ratings of any worm gear style clamp.

Features:

  • The screw head is 7mm
  • Long service life and safety for most general-purpose hose applications and connections

Recommendations:

  • Measure hose O.D. before selecting clamp size for proper fit
  • Double clamp on each hose end for critical applications

Construction:

  • Band & Housing: 316 Stainless Steel 9.7 mm wide band – 0.8mm thick
  • Screw Drive: 316 Stainless Steel 7.0 mm screw head

Specifications:

  • SAE Size: 3
  • Hose Inner Diameter: (inch) 3/16" – 1/4"
  • Clamping Range: (inch) 5/16" – 9/16"  / (mm) 8-14
  • Recommended Torque Inch lbs: 25-35

Quick Guide (pdf)
