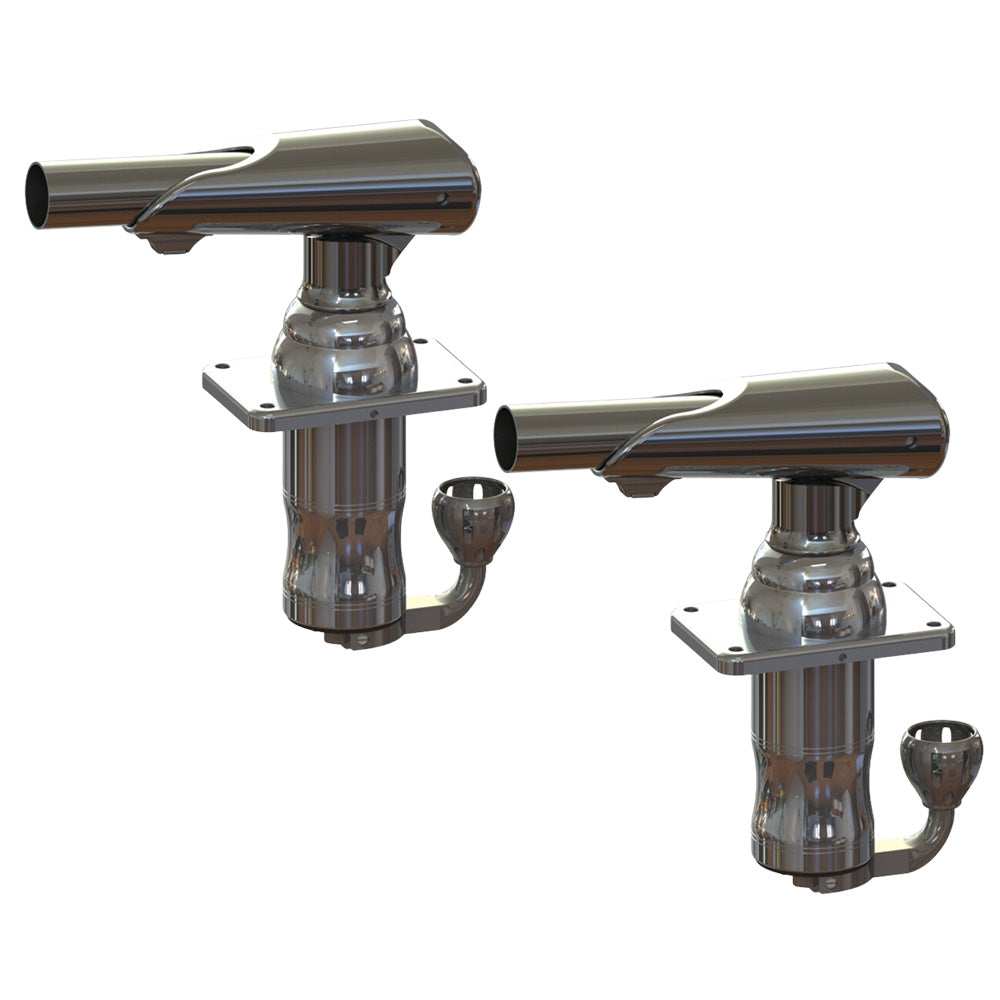

TACO Grand Slam 300 Outrigger Mount f/1-1/2" Outrigger [GS-300]

$3,649.99 $5,023.99

Quantity

Sku:

TSM-107855

Category:

Hunting & Fishing ,

Hunting & Fishing - Outriggers

Tag:

Brand_TACO Marine ,

Hunting & Fishing

Vendor:

TACO Marine

Type:

Outriggers

Grand Slam 300 Outrigger Mount for 1-1/2" Outrigger

Single-Handle Operation is Here! Introducing the Grand Slam 300 – a stainless-steel / polished, anodized aluminum, single-handle Outrigger Mount that delivers enhanced safety and performance with smooth, one-handed operation from the deck. Easily adjust rotation and lift of outrigger poles using the GS-300's ergonomic crank handle, which locks flush into the base. The Mount's attractive, all-metal design means no plastic components, a greater water seal, and increased protection from the elements. The GS-300 pairs with TACO’s award-winning Open Water Internal & Collapsible Carbon Fiber Outrigger Poles, as well as Aluminum or Carbon Fiber Tele-Outrigger Poles up to 22' with an underside pin-locking connection – eliminating the need for port and starboard designations.

Features & Benefits:

PIN-LOCKING ARM

  • No port or starboard designation
  • Underside locking pin connection
  • Arm lifts to 46.5º from the horizontal position for kite fishing and dock clearance
  • Pairs with 1-1/2" DIA Outrigger Poles up to 22'
  • Can be used with Outrigger Base Reducer for 1-1/8” DIA poles

HANDLE

  • Stainless-steel, ergonomic, single-hand crank handle with ball bearing
  • Enables lift and rotation of outrigger poles from the safety of the deck
  • Unique, locking flip handle
  •   Keeps the handle knob on the bottom when lifting or rotating the outrigger
  •   Provides full torque control and safety of deployment at all times
  • Robust, dual-detented lifting crank handle locks flush into base

MOUNT

  • Ideal for boats 25' to 40'
  • Constructed from cast stainless steel and machined aluminum for a stronger, lighter base
  • Each mount weighs 15 pounds (30 pounds per pair)
  • Safety detents prevent uncontrolled rotation when deploying outrigger poles
  • Allows a controlled 180° rotation, if needed
  • The locking head eliminates the downward creep of outrigger poles
  • Equipped to handle the torque and whip generated by poles up to 22’
  • Includes mounting hardware for easy installation
  • The base hole pattern matches all TACO Marine Grand Slam models, as well as the industry standard hole patterns of other top-mount outrigger systems
  • Backing plates (BP-0300) sold separately
  • 3-year limited warranty

Specifications:

  • Weight: 30lbs
  • Sold as a pair

Quick Guide (pdf)
