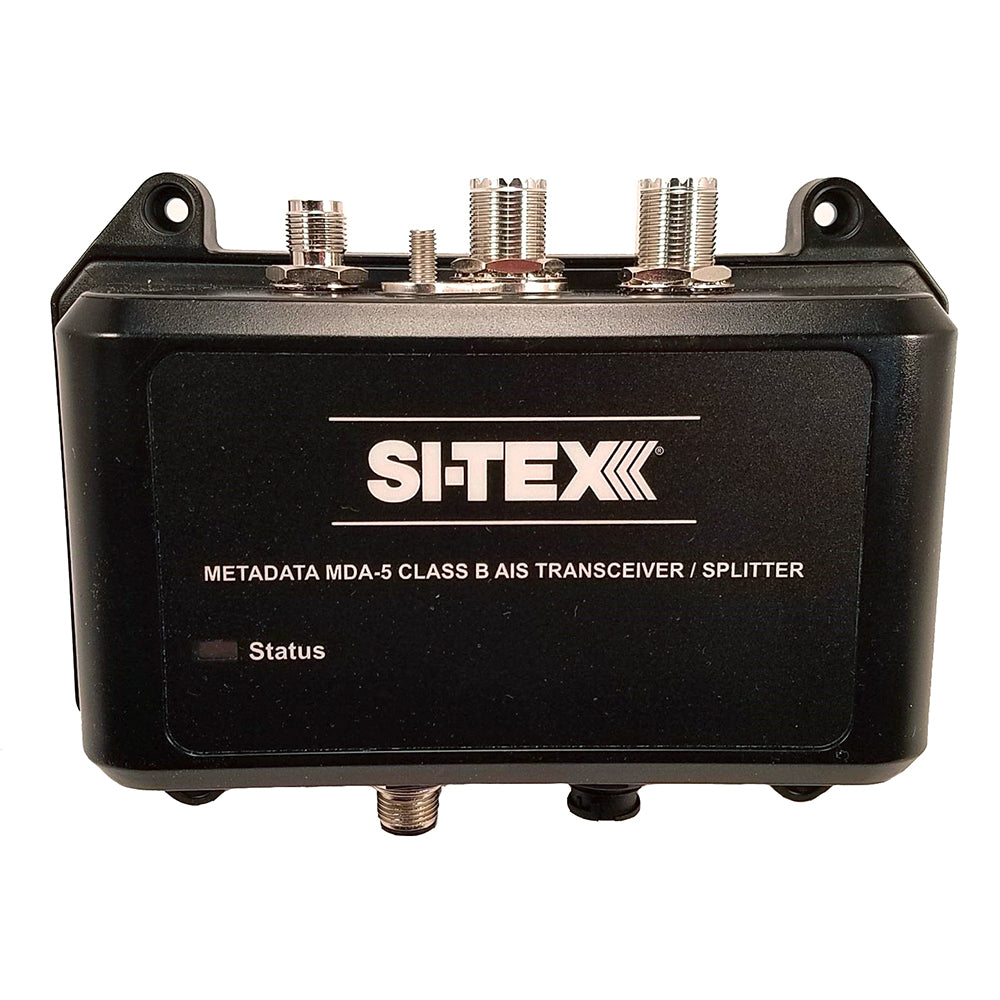

SI-TEX MDA-5H Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter (w/o Wi-Fi) [MDA-5H]

$1,108.79 $1,438.80

Quantity

Sku:

TSM-93637

Category:

Marine Navigation & Instruments ,

Marine Navigation & Instruments - AIS Systems

Tag:

Brand_SI-TEX ,

Marine Navigation & Instruments

Vendor:

SI-TEX

Type:

AIS Systems

MDA-5H Hi-Power 5W SOTDMA Class B AIS Transceiver with Built-In Antenna Splitter (without Wi-Fi)

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter (Without WiFi)

Features:

  • The MDA-5 is the world's most sophisticated fully certified 5-Watt SOTDMA Class B AIS Mobile on the market
  • 5-Watt transmitter power, Higher Output power means your vessel will be seen at longer ranges by other vessels and via AIS websites
  • SOTDMA Class A Priorities means that your vessel will always transmit and be seen in very congested Commercial Harbors and Ports where traditional Class B units don't have network priority.
  • Integrated zero loss VHF antenna splitter - no second antenna needed
  • NMEA-0183 data port, NMEA-2000 & USB intelligent connectivity to all bridge systems
  • Built-In GPS & GLONASS satellite navigation receiver
  • Water Proof certified to IPX7
  • Dual Receivers decodes all DSC & AIS messages, including MOB & SART
  • Ultra-power efficient
  • IEC-62287-2, FCC, and USCG certified
  • 2 Year Warranty

Package Includes:

  • Commercial Grade External GPS Antenna with Coax Cable
  • Mounting hardware
  • Power & Data Interface cable
  • VHF Radio Connection cable
  • Product Information DVD, with ProAis2 Software for Programming & Troubleshooting
  • User Manual & Quick Start Guide

Specifications:

  • Transmitter Output Power: 5 Watts
  • VHF Antenna Connector SO-239 UHF
  • GPS Antenna Connector TNC
  • Frequency Range: 156.025-162.025 Mhz
  • Input Voltage: 9.6-31.2 VDC
  • Current Draw: 220mA average power consumption
  • Operating Temperature Range: -25C to +55xC
  • Ingress Protection: IP67
  • Dimensions (transceiver): 6.8" W x 5.0" H x 2.0" D
  • Weight 0.8 lbs.

Specifications:

  • AIS Class: B
  • Antenna Included: No
  • Display Included: No
  • Function: Receive/Transmit
  • GPS Included: Yes
  • Box Dimensions: 5"H x 9"W x 14"L WT: 3.25 lbs
  • UPC: 010407510712
