Electrical , Electrical - Circuit Breakers

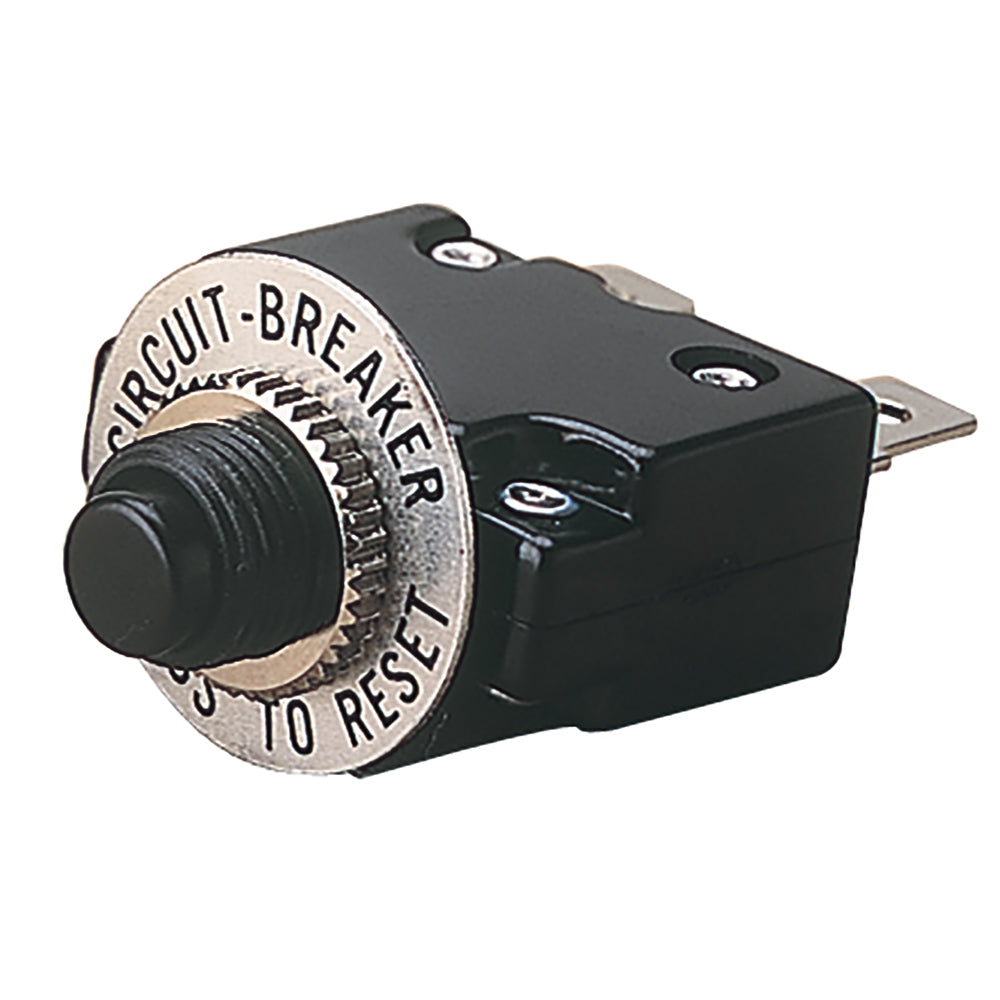

Sea-Dog Thermal AC/DC Circuit Breaker - 15 Amp [420815-1]

$5.99 $8.34

Quantity

Sku:

TSM-79222

Category:

Electrical ,

Electrical - Circuit Breakers

Tag:

1st Class Eligible ,

Brand_Sea-Dog

Vendor:

Sea-Dog

Type:

Circuit Breakers

Thermal AC/DC Circuit Breaker - 15 Amp

Thermal AC/DC Circuit Breakers are designed to protect an electrical circuit from damage caused by excess current. Vibration and shock resistant these push-to-reset circuit breakers are an economical alternative to magnetic breakers. Unlike sacrificial fuses they have the advantage of being resettable after tripping. Panel mounted compact design. Constructed of molded Bakelite with quick connect, terminal style, stamped brass contacts. Optional Thermal Breaker Boot (420839) provides additional protection in wet environments. 5-30A @ 125-250VAC. 32VDC.

Features:

  • Panel Depth: 3/16"
  • Amps: 15

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Amperage: 15a
  • Box Dimensions: 1"H x 4"W x 6"L WT: 0.1 lbs
  • UPC: 035514420471
