Sea-Dog Mini Battery Switch Key w/Removable Knob - 32V 100A [422732-1]
Sea-Dog Mini Battery Switch Key w/Removable Knob - 32V 100A [422732-1]
Electrical , Electrical - Battery Management

Sea-Dog Mini Battery Switch Key w/Removable Knob - 32V 100A [422732-1]

$25.99 $39.95

Quantity

Sku:

TSM-98448

Category:

Electrical ,

Electrical - Battery Management

Tag:

1st Class Eligible ,

Brand_Sea-Dog

Vendor:

Sea-Dog

Type:

Battery Management

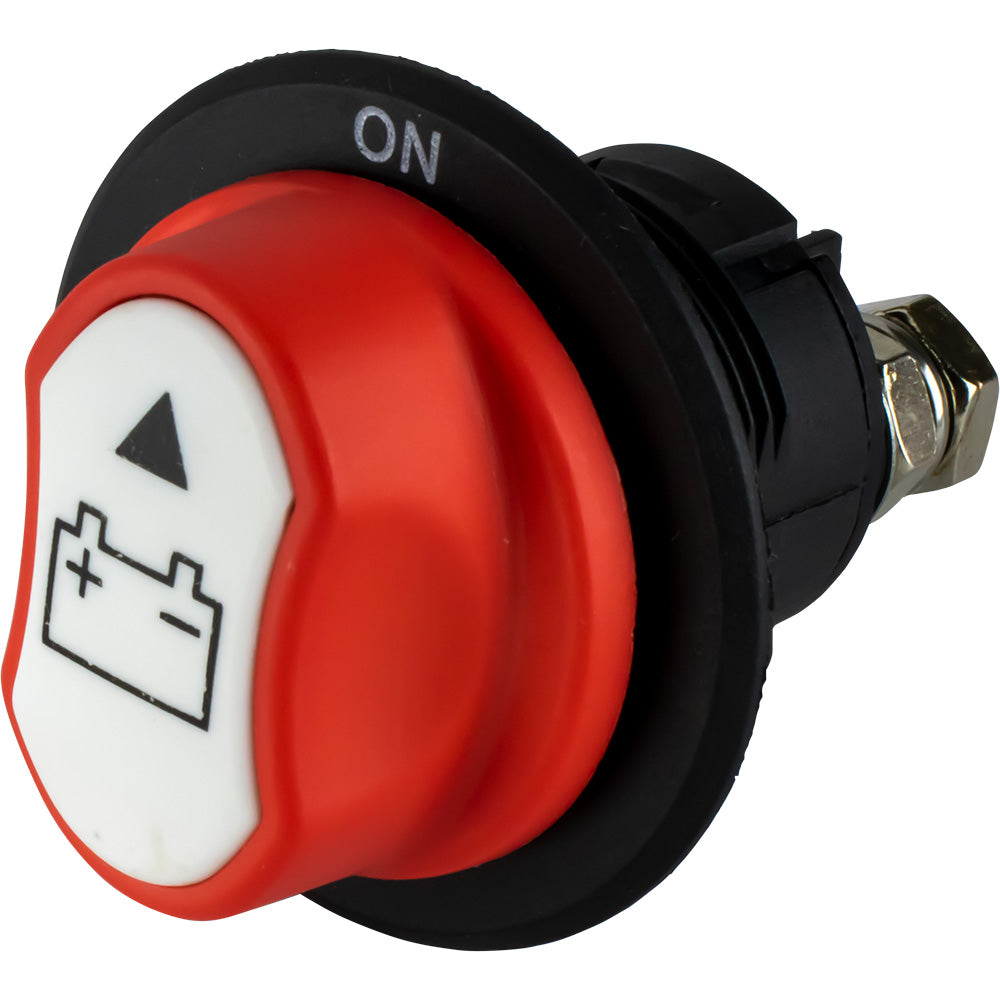

Mini Battery Switch Key with Removable Knob - 32V & 100A

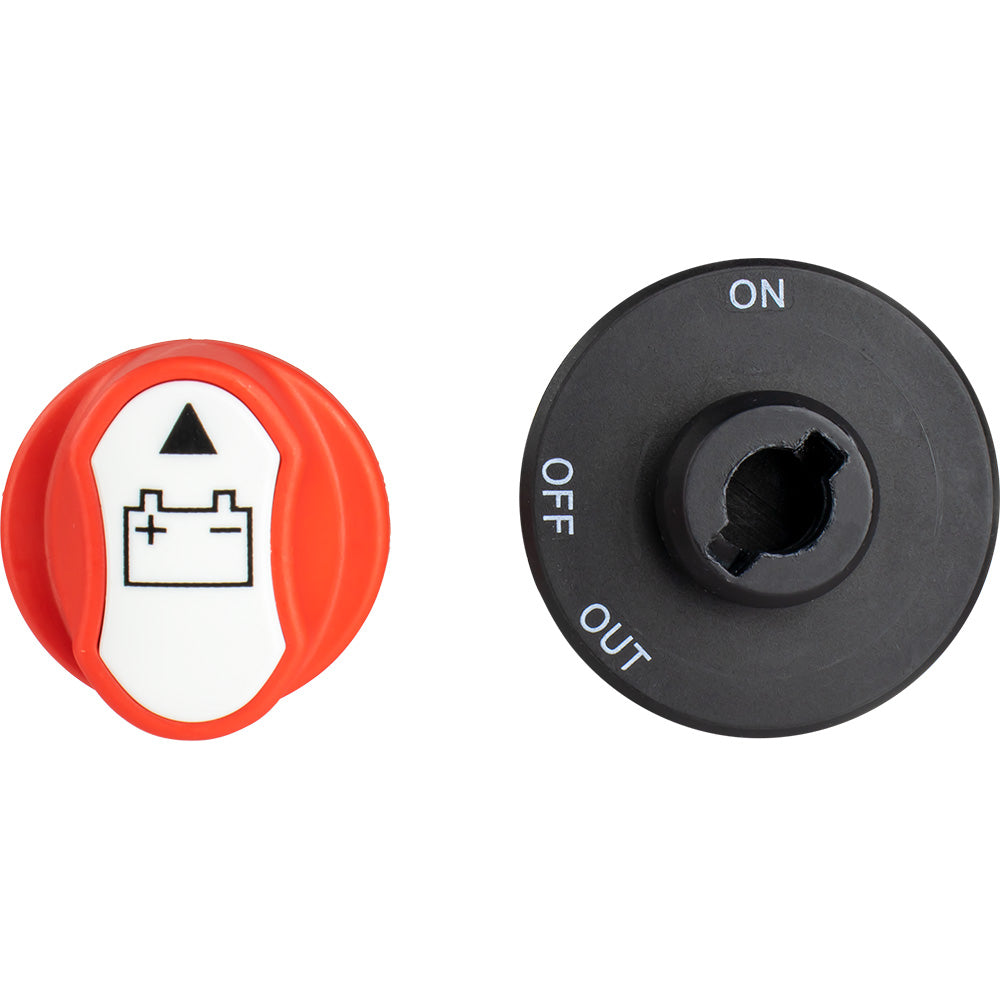

These Mini Battery Switches feature a removable knob for extra security. To remove, simply twist the cap to the OUT position and pull. Mini footprint makes it ideal for close quarters. The 422732-1 is rated at 100A continuous and 150A cranking amps. Installation is as easy as drilling a 1-1/8" hole for the 422732-1, inserting the socket body, tightening the locking nut, and connecting the wires.

Features:

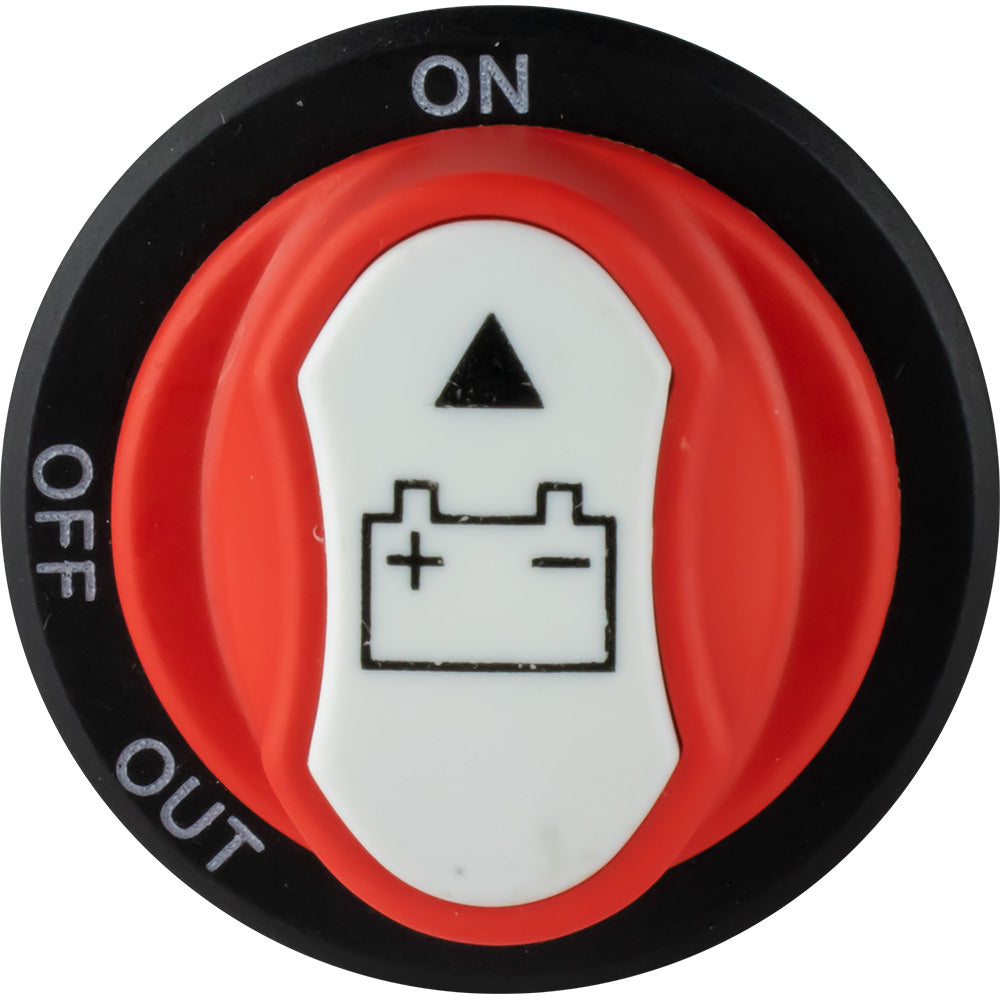

  • 3 Switch positions: On, off, and out
  • Constructed of machined brass and injection molded nylon

Specifications:

  • Switch Face Width: (inch) 1-1/8"
  • Volts: 32
  • Amps: 100
  • Stud Diameter: (inch) 1/4"

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Continuous Amperage: 100
  • Positions: 3
  • Box Dimensions: 2"H x 4"W x 6"L WT: 0.2 lbs
  • UPC: 035514432955
