Johnson Pump Aqua O2 Flex Mount 500 GPH Aerator Pump - 12V [10-13642-01]

$46.99 $84.27

Quantity

Sku:

TSM-102634

Category:

Marine Plumbing & Ventilation ,

Marine Plumbing & Ventilation - Livewell Pumps

Tag:

Brand_Johnson Pump ,

Marine Plumbing & Ventilation

Vendor:

Johnson Pump

Type:

Livewell Pumps

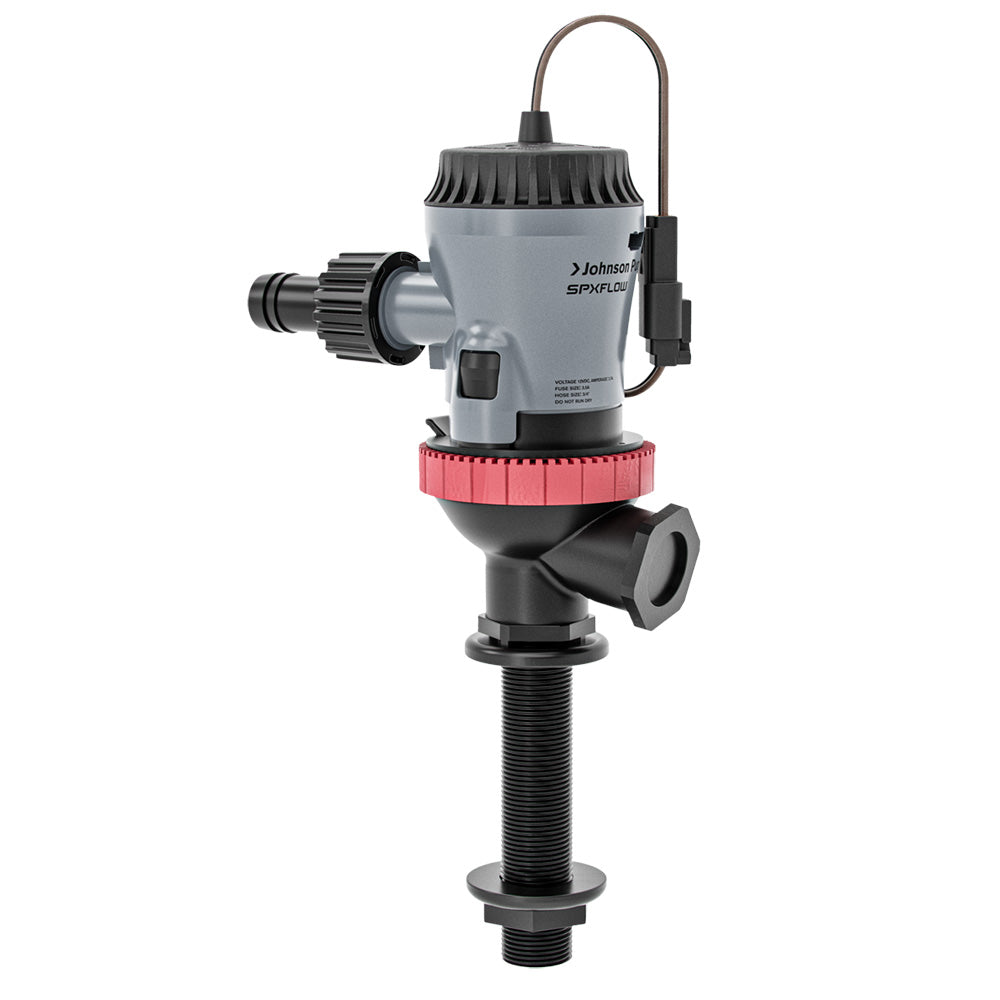

Aqua O2 Flex Mount 500 GPH Aerator Pump - 12V

Johnson Pump cartridge aerator pumps offer ease of convenience and years of reliable service. This pump has an improved design with an easy-to-change/replace motor cartridge.

Features:

  • All Aqua O2 Cartridge Aerator Pumps offer the convenience of using only one intake for both the livewell and washdown pump
  • Includes a 3/4 NPSM thru-hull inlet that can be used straight or 90-degree
  • High-flow impeller design
  • Quick-change motor connection
  • 360-degree pump discharge rotation
  • Switchless automatic bilge pump with low-amp resistance monitoring
  • Durable thermoplastic housing design commonality with removable motor cartridge
  • Water-cooled motor, 316 stainless steel shaft, and permanently lubricated double bearings
  • Upgradable motor cartridge
  • Dual-port inlet

Benefits:

  • Heightened efficiency and an increased flow rate
  • Enjoy quick and hassle-free cartridge motor changes or capacity upgrades
  • Reorient discharge in any direction
  • The common body allows interchangeable motor cartridge replacement in the same or different size
  • Corrosion-resistant and extended life
  • Allows single transom intake for dual intake pump application
  • Can increase or decrease capacity according to the environment and flow needed
  • Choose the correct intake for the application

Competitive Advantages:

  • The most efficient and highest flow in the GPH capacity category
  • Industry-first and only cartridge motor pump with an included harness connection requiring no cutting and splicing of wires
  • Unmatched versatility for ease of installation

Specifications:

  • Pump Size: 500 GPH
  • Capacity Straight (12V): 585 GPH (37 I/min)
  • Voltage: 12V
  • Amp: 2.7A
  • Fuse: 3.5A
  • Hose Connection: 3/4 in.
  • Wire Size: 16 GA, TINNED
  • Weight: 9.6 oz
  • Body: ABS
  • Dura Port: PA66/GF - Nylon
  • Shaft: 316 Stainless Steel
  • Shaft Seal: Nitrile Rubber
  • Motor Cartridge: PC-ABS

Specifications:

  • Gallons Per Hour: 500 GPH
  • Inlet Style: Straight and Elbow
  • Volts: 12v
  • Box Dimensions: 3"H x 5"W x 9"L WT: 1.4 lbs
  • UPC: 7330717017743
