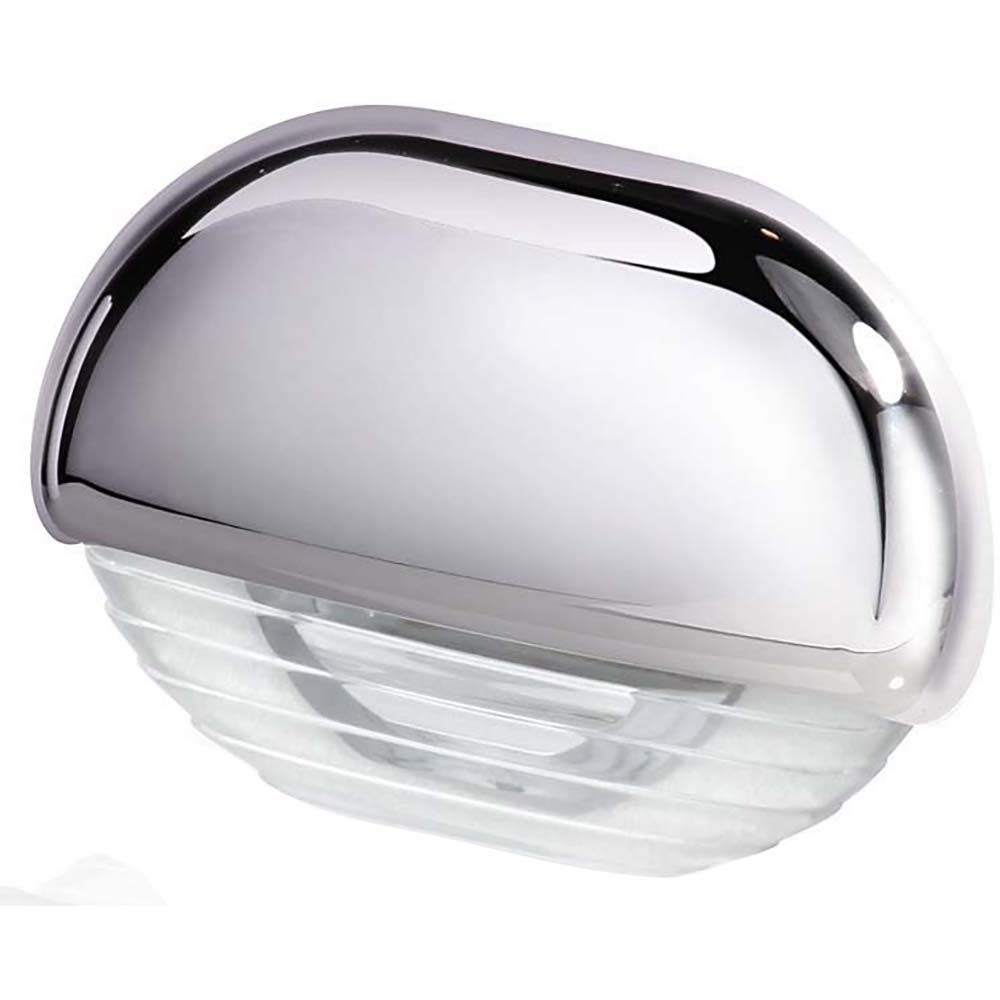

White LED Easy Fit Step Lamp with Chrome Cap

Attractive and timeless LED courtesy lighting for a wide variety of interior and exterior lighting applications.

Light is radiated downward at an angle of 30° making these lamps ideal for illuminating onboard areas such as steps, stairs, toe kicks, storage areas, companionways, deck fittings, signs, and switches without shining into the eyes.

Multivolt electronics ensure constant light output in 12V or 24V DC systems. Easy Fit Gen 2 series lamps are completely sealed, shock and vibration resistant, and represent reliable "fit and forget" technology.

Note: Easy Fit lamps no longer have the two open slots for mounting the original caps. This improves water tightness when installed in wet areas like cockpits. Each lamp is pre-wired with 100mm of marine cable and supplied with stainless steel screws. Optic appears clear until illuminated.

Features:

• 12-24V DC
• Chrome Plated Plated Cap
• White

Specifications:

• Lens Material: UV resistant enhanced impact acrylic
• Cap Material: White plastic, chrome-plated plastic, polished 316 stainless steel
• Cable: Pre-wired with 100mm marine cable
• Voltage: Multivolt for optimum brightness in 12 and 24 volt systems
• Power Consumption: 0.5W ( < 0.04A@12V / < 0.02A@24V )
• Degree of Protection: IP67 - Completely Sealed
• Weight: Stainless Cap - 30g (Including cable) Plastic Cap - 15g (Including cable)
• Approvals: CE, RCM

Specifications:

• Bulb Type: LED
• Housing: Chrome
• LED Color: White
• Voltage - Input Range (Volts): 12/24v
• Box Dimensions: 2"H x 4"W x 5"L WT: 0.15 lbs
• UPC: 9416325238188
