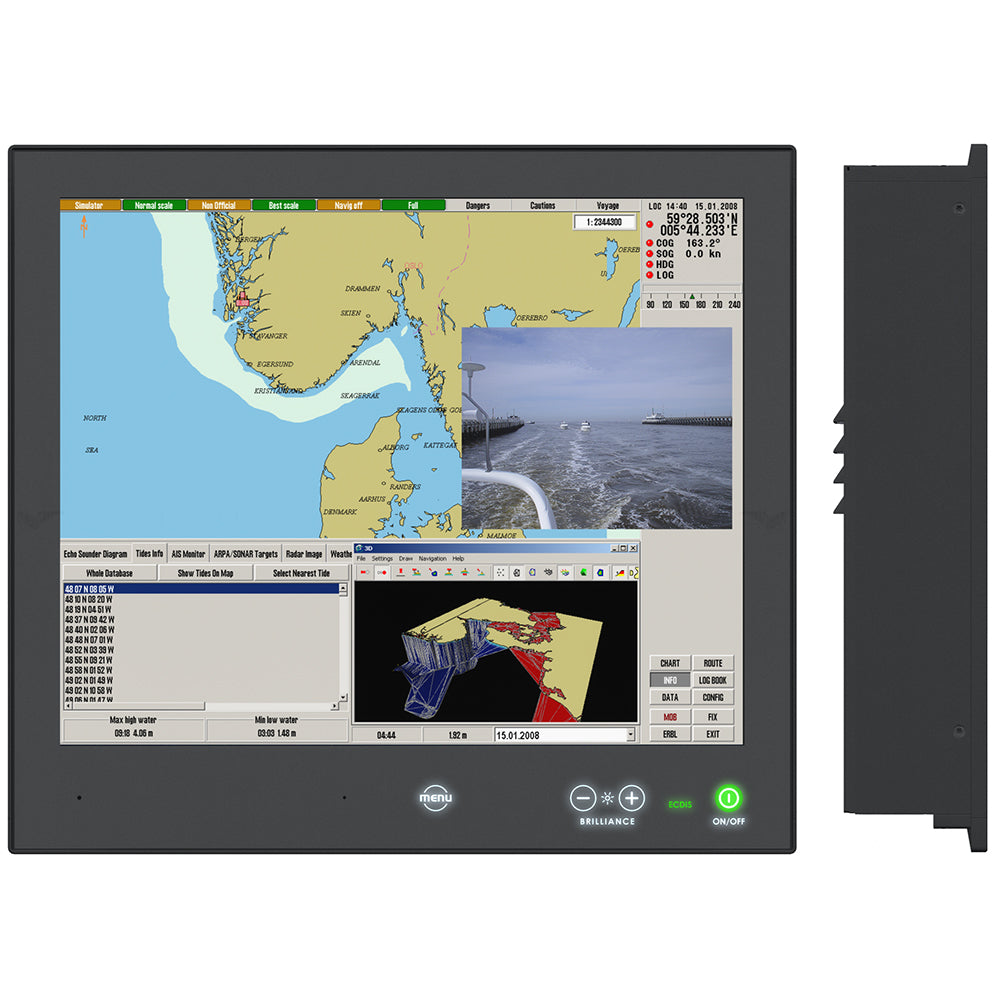

Series X - Generation 2 (G2) High-Bright 17" Multi-Power Display with Buttons - AC/DC 24V

Sunlight Readable / High Bright Series X Generation 2 (G2) Displays offer the ultimate in performance, convenience, state of the art design and enduring quality for system integrators and boat builders. Series X products offer a range of feature sets optimized for varying requirements and applications.

The Series X Generation 2 (G2) display range is a flexible monitor solution designed and type approved for the professional maritime segment, where reliability and long life time are key pre-requisites for the industry. The product range combines stunning design and technology with innovative features and options, making it all that the integrator needs for top class type-approved marine systems.

The multi-input MMD models provide a wide choice of display size and format for a multitude of shipboard applications, where combining data and video inputs to a single unit provides maximum flexibility. Be it for ship navigation, automation or security, this range with all it's possible options provides a robust and multipurpose platform from which to display and manage data and multiple camera or sensor videos.

Series X Generation 2 (G2) displays feature Glass Display Control™, LED Backlight Technology, full dimming and multipower as standard, and can also accomodate and combine a number of options such as multi-touch screen, optical bonding and ECDIS calibration. By factory standards the 17 inch unit is ECDIS Compliant.

Specifications:

• AC/DC Multi-Power*
• Brightness: 1000 cd/m2
• Native Resolution: 1280 x 1024 (SXGA)
• Contrast Ratio: 1000:1
• Aspect Ratio: 5:4
• Inputs: 2 x DVI-I, 1 x DP, 2 x Composite (BNC)
• LED Backlight
• PIP & PBP

* AC/DC Multi-Power supports 115 & 230VAC + 50/60Hz + 24VDC with Automatic Switching

Specifications:

• Screen Size: 17"
• AC/DC: Both
• Resolution (VxH): 1280 x 1024
• Touchscreen: No
