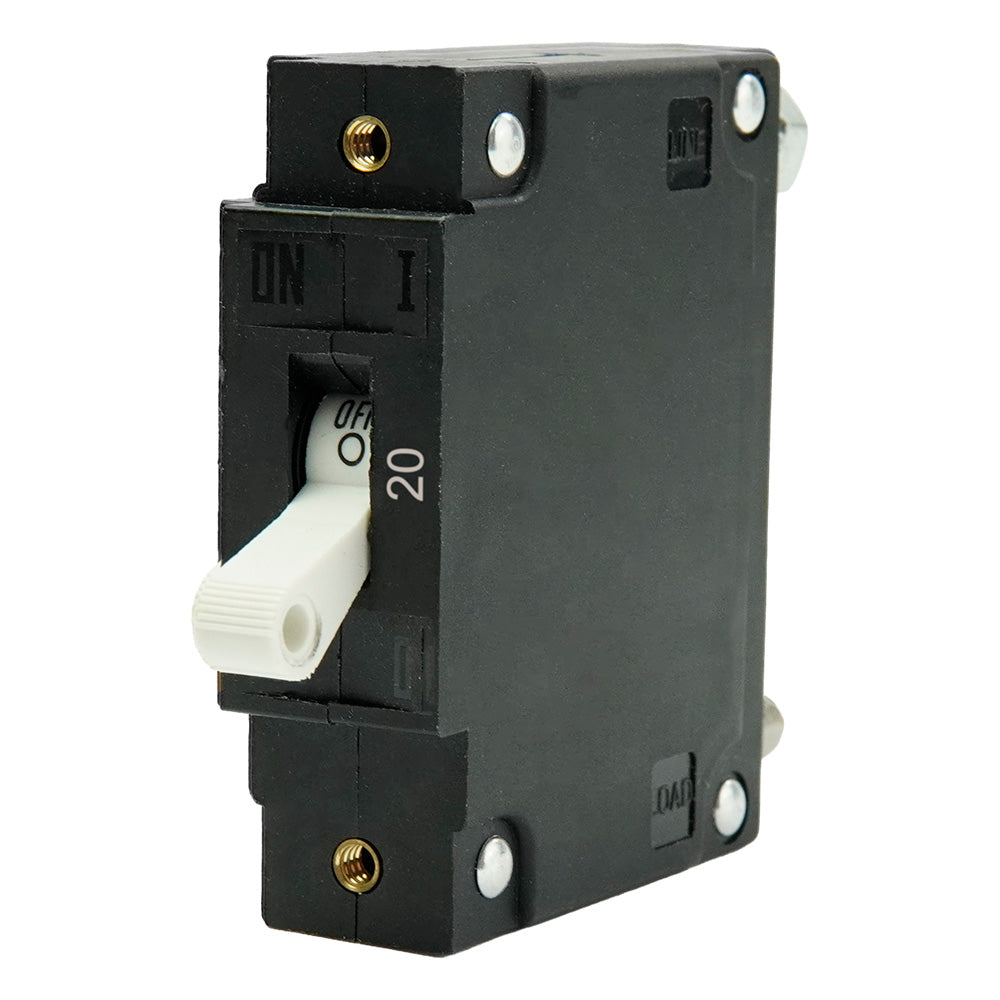

Egis C Series White Toggle Panel Mount Circuit Breaker - Single Pole 20A [3501-020]

C Series White Toggle Panel Mount Circuit Breaker - Single Pole 20A

Features:

• Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws.
• AC & DC Rated to cover a wide range of system application needs.
• Toggle-Style Actuator for easy on/off switching control, combined with circuit protection.
• High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications.
• High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current.
• High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power.
• Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots.

Specifications:

• Amperage: 20a
• Type: Electric
• Box Dimensions: 3"H x 5"W x 6"L WT: 0.35 lbs
• UPC: 850067590828
