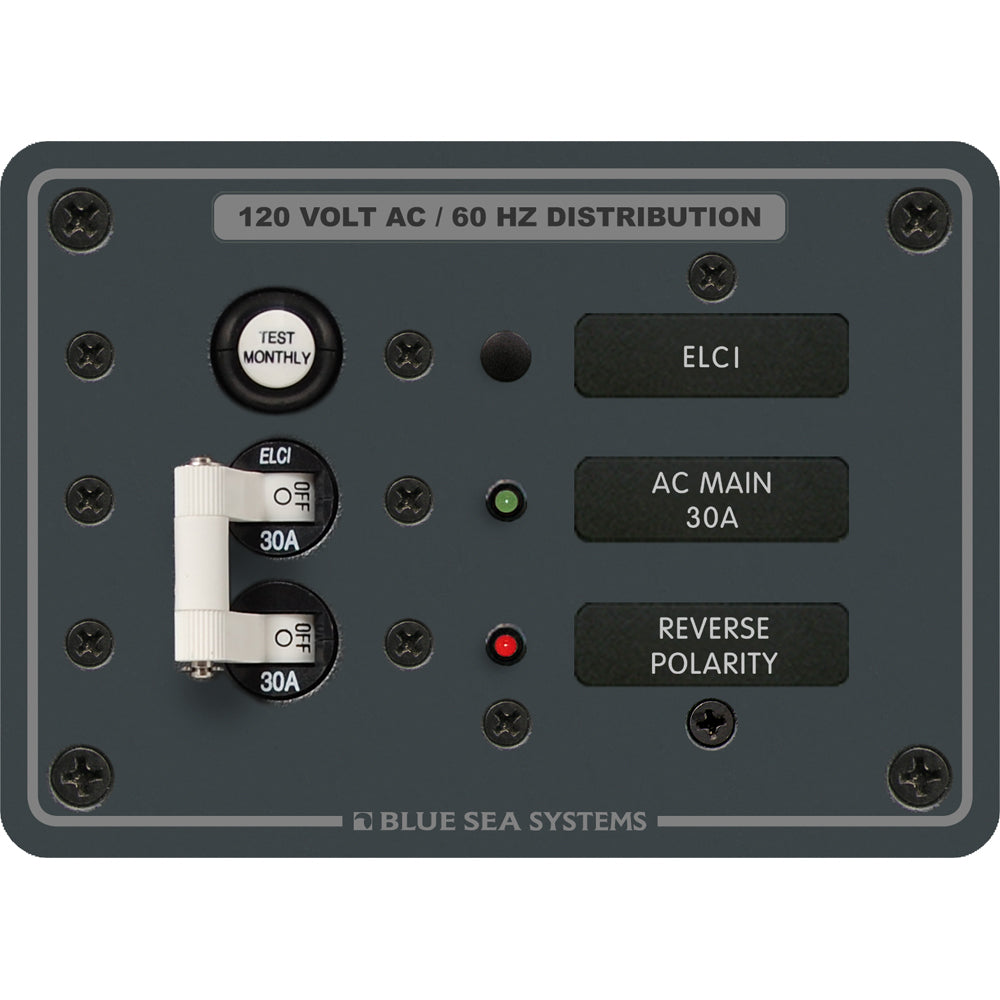

Blue Sea 8100 ELCI GFCI Panel [8100]

$461.99 $891.59

Quantity

Sku:

TSM-40605

Category:

Electrical ,

Electrical - Electrical Panels

Tag:

Brand_Blue Sea Systems ,

Electrical

Vendor:

Blue Sea Systems

Type:

Electrical Panels

ELCI Main 30A Double Pole

  • One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
  • ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
  • Red " Reverse Polarity" LED
  • All circuit label positions are backlit
  • "ON" indicating LEDs


Specifications
Nominal Voltage 120V AC
Leakage Trip Amps 30mA
Height 5.25" (133.35mm)
Width 3.75" (95.25mm)
Depth 3.50" (88.9mm)
Weight 2.25lb (1.02kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AC/DC: AC
  • Voltage: 120v
  • Box Dimensions: 5"H x 9"W x 12"L WT: 2 lbs
  • UPC: 632085081003

Quick Guide (pdf)
Owner's Manual (pdf)
