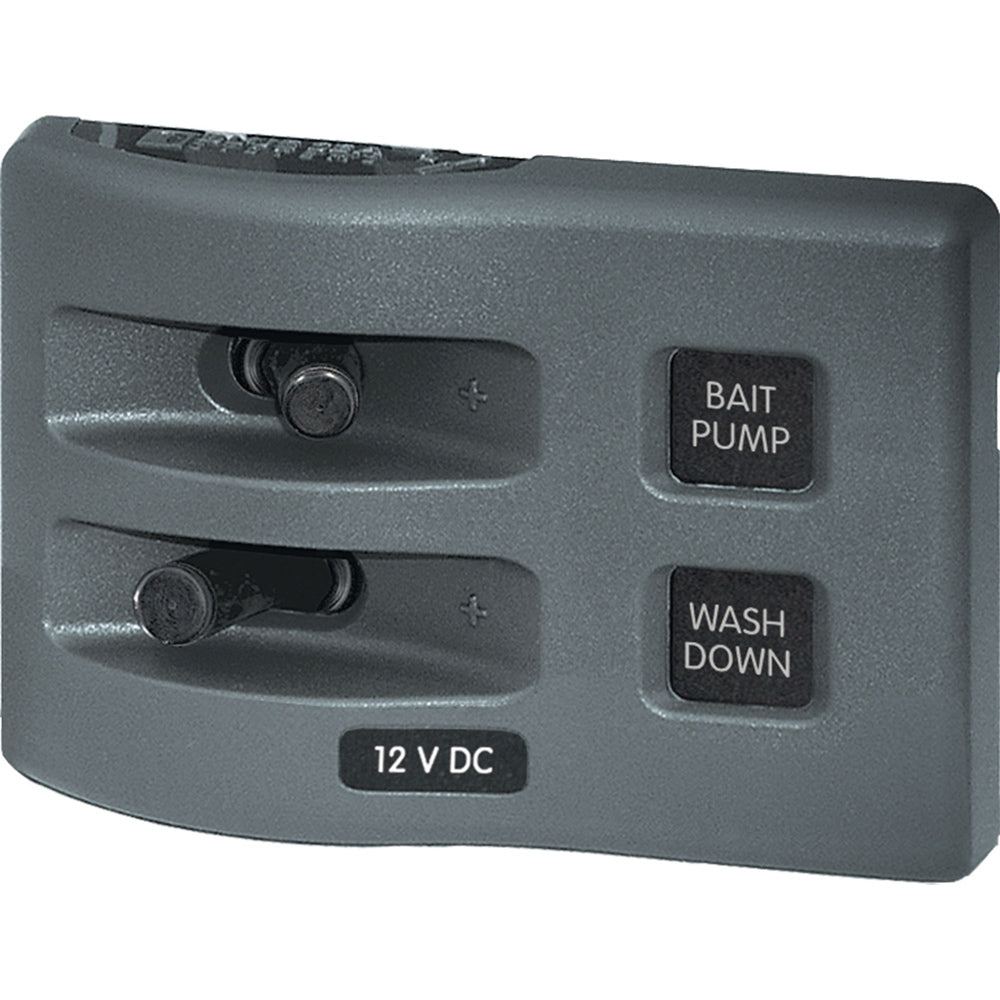

Blue Sea 4303 WeatherDeck 12V DC Waterproof Switch Panel - 2 Position [4303]

$35.99 $67.19

Quantity

Sku:

TSM-51813

Category:

Electrical ,

Electrical - Electrical Panels

Tag:

1st Class Eligible ,

Brand_Blue Sea Systems

Vendor:

Blue Sea Systems

Type:

Electrical Panels

WeatherDeck® 12V DC Waterproof Switch Panel - 2 Position

  • Integrated switch guards reduce the risk of accidental switching
  • Panels can be mounted in four different orientations
  • Panel front rated IP67 when properly mounted with watertight mounting gasket
  • UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws


Weatherproof: Waterproof
Positions: 2
Nominal Voltage: 12V DC/24V DC
Circuit Protection: None
Maximum Amperage: 15A @ 12V DC (per circuit)
Material: Reinforced Polycarbonate
Height: 2.60"(66.04 mm)
Width : 3.88"(98.55 mm)
Depth: 2.50"(63.5 mm)
Weight: 0.52lb (0.24 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Waterproof: Waterproof
  • AC/DC: DC
  • Max Breaker Quantity: 2
  • Voltage: 12/24v
  • Box Dimensions: 4"H x 6"W x 6"L WT: 0.45 lbs
  • UPC: 632085043032

Owner's Manual (pdf)
